DPM for KMR UMBRA

About the DPM for KMR UMBRA L-02 & W-02 (X) 4.5″ BARREL & W-02 UMBRA 5″ INCH BARREL :

NEW DPM Mechanical Recoil Reduction System for KMR UMBRA L-02 & W-02 (X) 4.5″ INCH BARREL & W-02 UMBRA 5″ INCH barrel- 15 USER SETTINGS

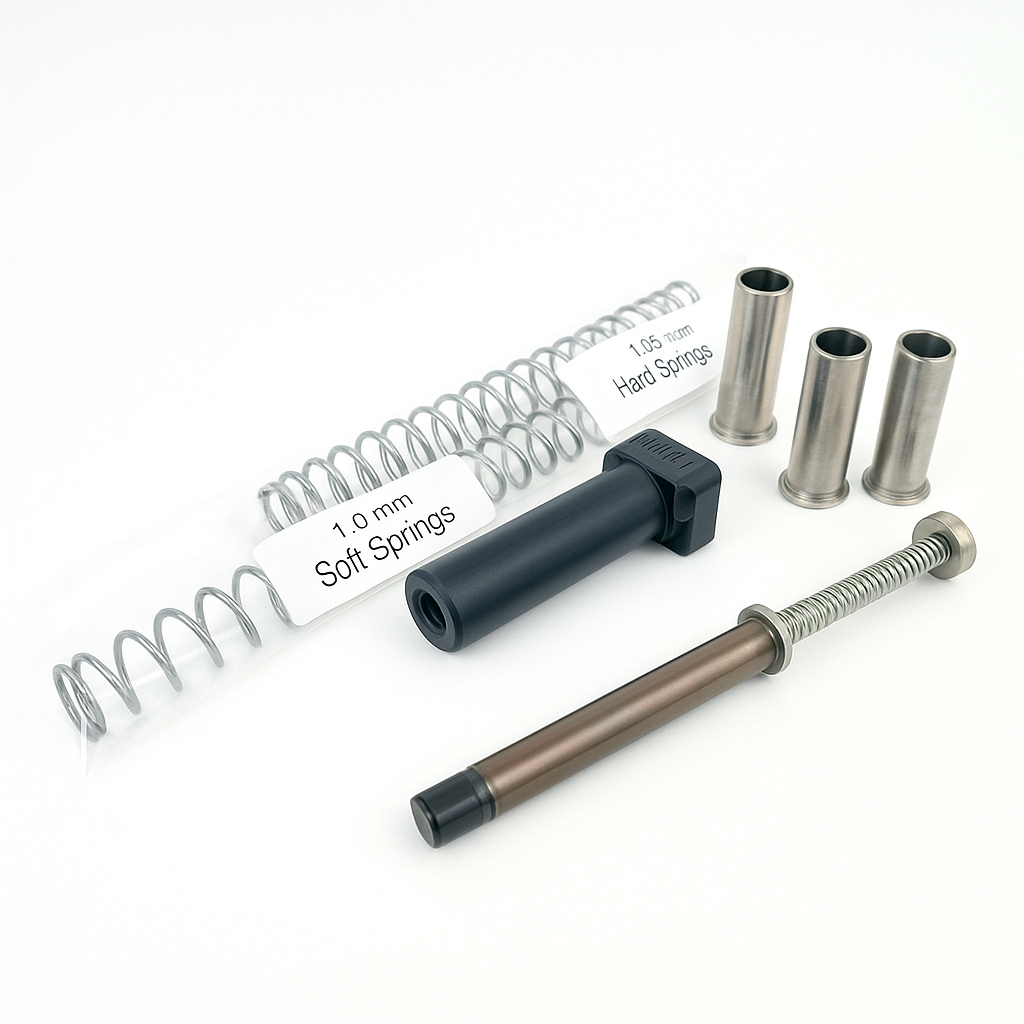

This DPM kit includes two complete sets of external springs, one set with 1.0mm wire diameter and another with 1.05mm.

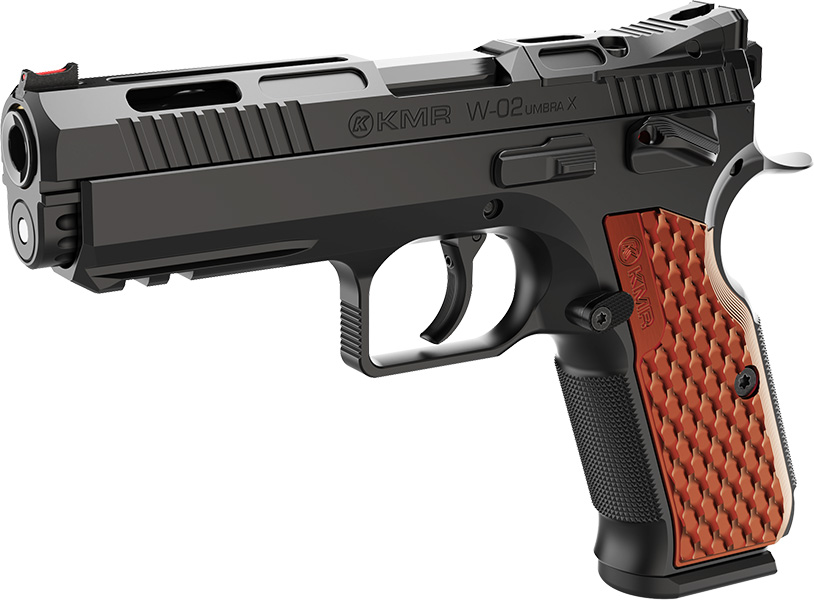

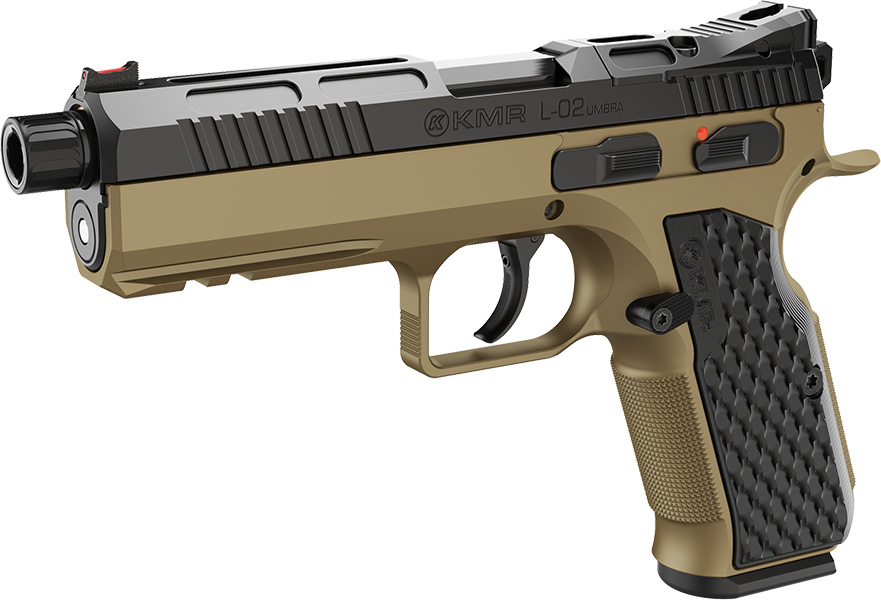

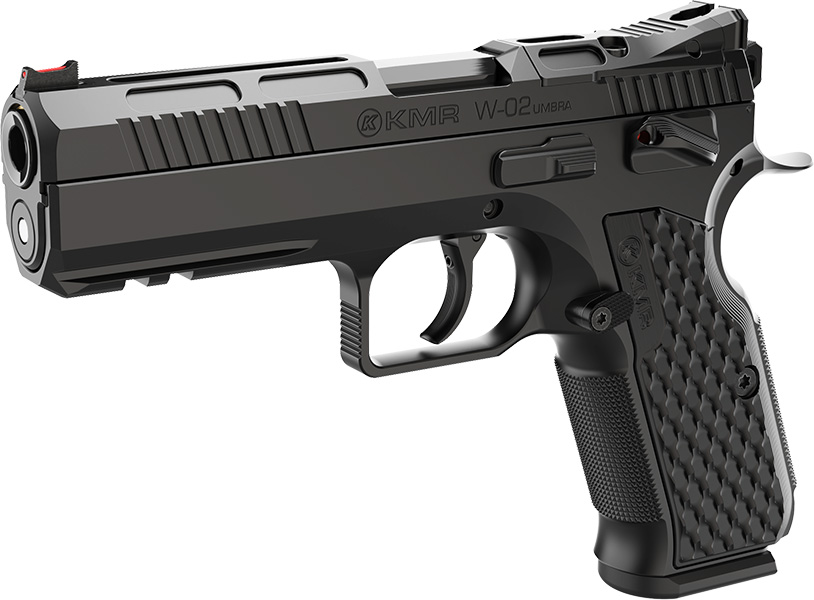

Will Fit: KMR UMBRA L-02 & W-02 (X) 4.5″ INCH BARREL & W-02 UMBRA 5″ INCH barrel

Not Compatible For  KMR L-02 SPECTRA & ORCA 5” BARREL

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

The  ALUMINUM spring plug must always be installed when the DPM Recoil Rod and springs are used.

Pound Ratings:

Slide on the battery (idle position)

Soft Springs 1.0mm

• Short spring: 2.5kgs – 5.5 lb
• Long spring: 3kgs – 6 lb

Standard Springs 1.05mm

• Short spring:  2.7kgs – 5.95 lb
• Medium spring: 3.2kgs – 7 lb
• Long Spring: 3.7kgs – 8.15 lb

  Total power (slide full open position)  approx.

• Short Plug:  6kgs  – 13.2 lb
• Medium Plug: 8kgs – 17.6 lb
• Long Plug:  10kgs –  22 lb

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy
