DPM for S&W EQUALIZER TS & NTS 3.675″ BARREL 9MM

About the S&W EQUALIZER TS & NTS 3.675″ BARREL 9MM by DPM Systems:

ATTENTION: The open coil must always be placed AGAINST the guide’s rod flange.

Compatible: S&W EQUALIZER TS & NTS 3.675″ Barrel 9mm

The recoil reduction system works due to the multi spring intricate recoil rod (3 different energetic springs), controls the functionality of the pistol and replaces the stock recoil rod without requiring any modification.

The third spring which is contained within the recoil rod controls the movement of the slide so it never rams on the frame.

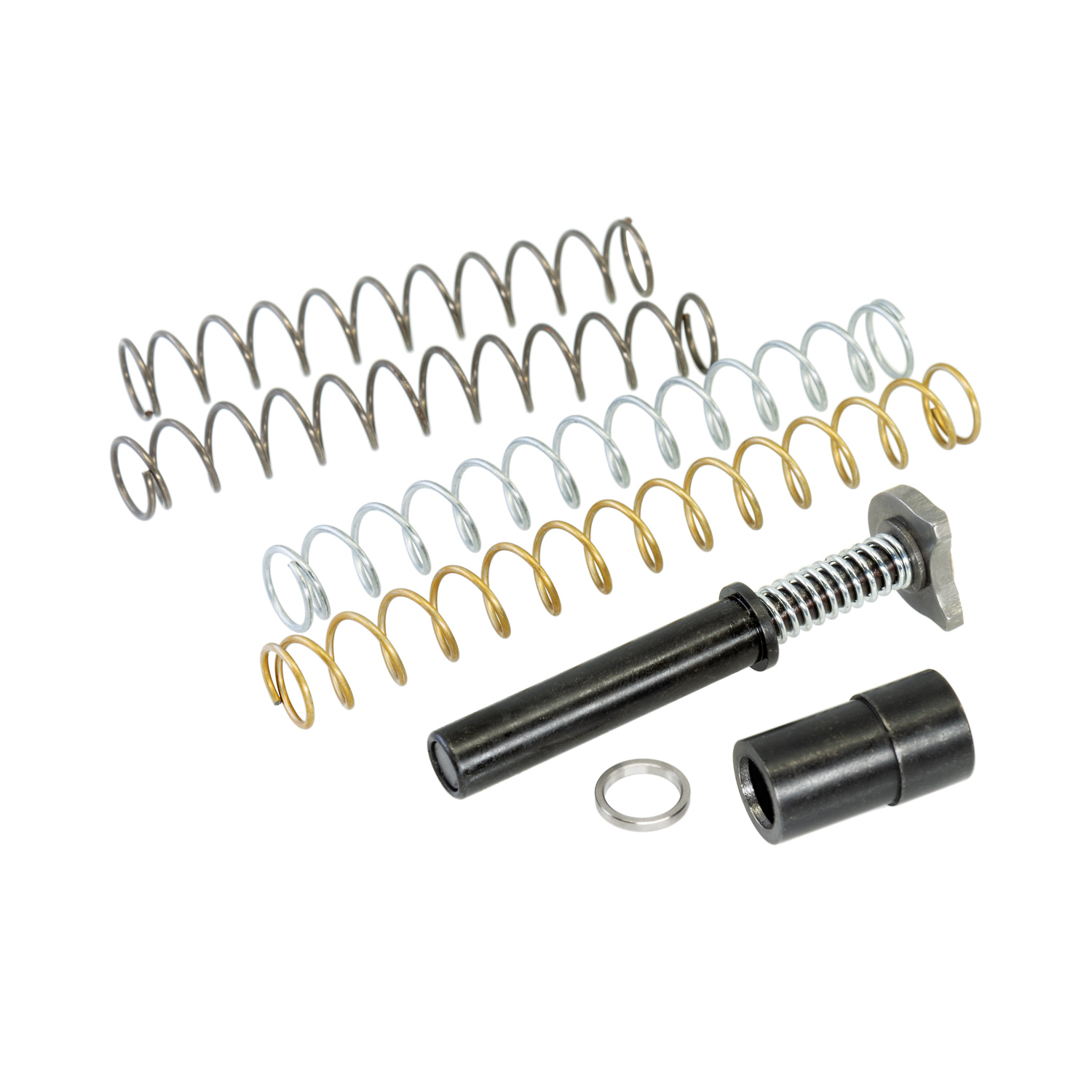

Within the kit are included 4 different in length and strength external springs, for the 2 gold coated springs their wire diameter is 0.9mm and are softer during the slide travel than the 2 silver coated springs with wire diameter 0.95mm.

 **As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power rates

Slide on the battery (idle position)

• Gold Short Spring 0.90mm:   6.2 lbs
• Gold Long Spring  0.90mm:   7.3 lbs
• Silver Short Spring  0.95mm: 7 lbs
• Silver Long  Spring 0.95mm:  8.15 lbs

Total force (Slide full open position) approx. :

• Gold Short Spring  0.90mm: 12 lbs
• Gold Long Spring   0.90mm: 13.2 lbs
• Silver Short Spring 0.95mm: 14.3 lbs
• Silver Long  Spring 0.95mm: 15.4 lbs

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

*Dimensions of the spring are the same as the original.
