DPM for Shadow Systems MR920 – DR920 – XR920 & Elite for Comps

About the Shadow Systems MR920 – DR920 – XR920 & Elite for Comps:

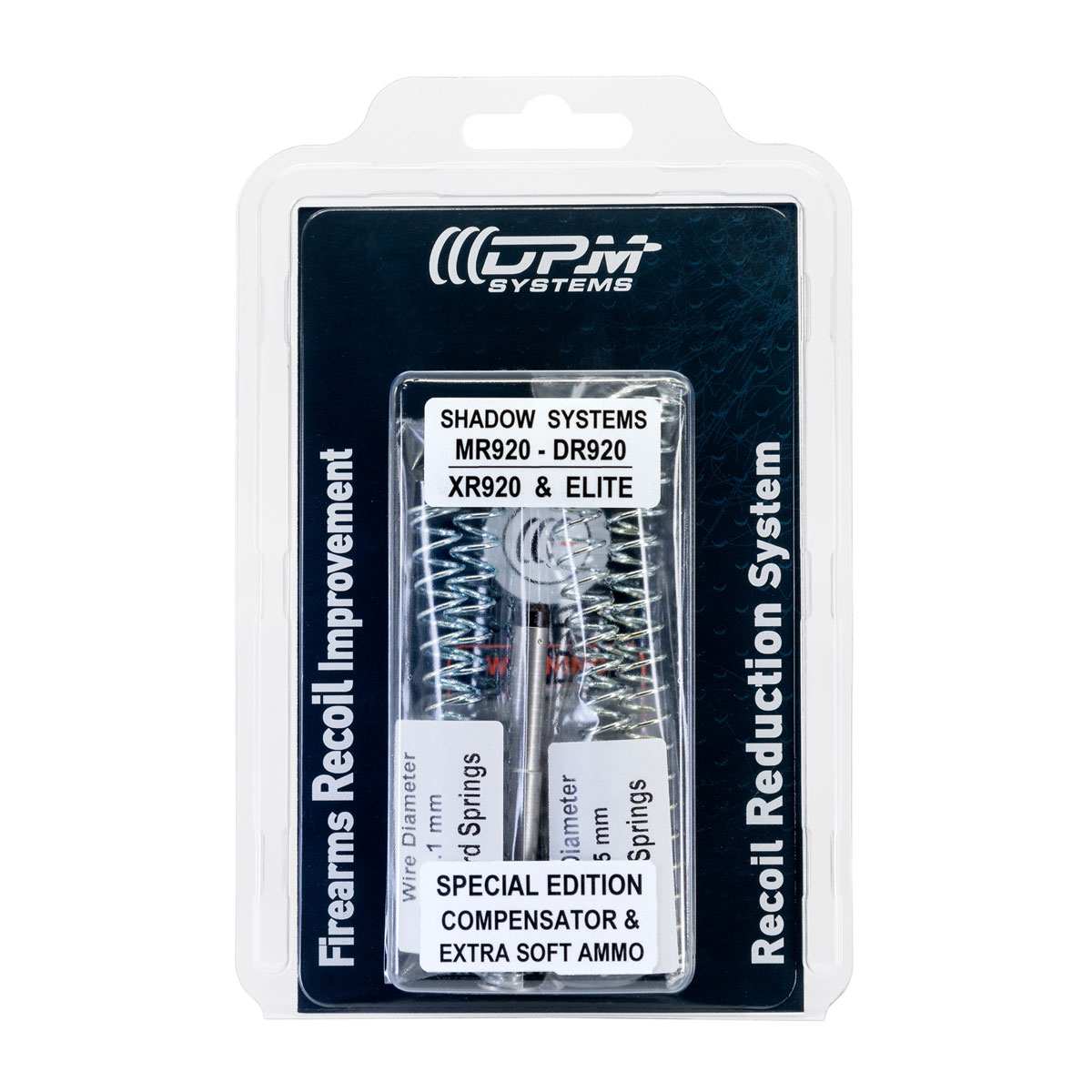

New Special Edition DPM Recoil Reduction System for Shadow Systems MR920 – DR920 – XR920 & Elite for Compensators and Extra Soft Ammo.

Important Notice: Always install the included washer.

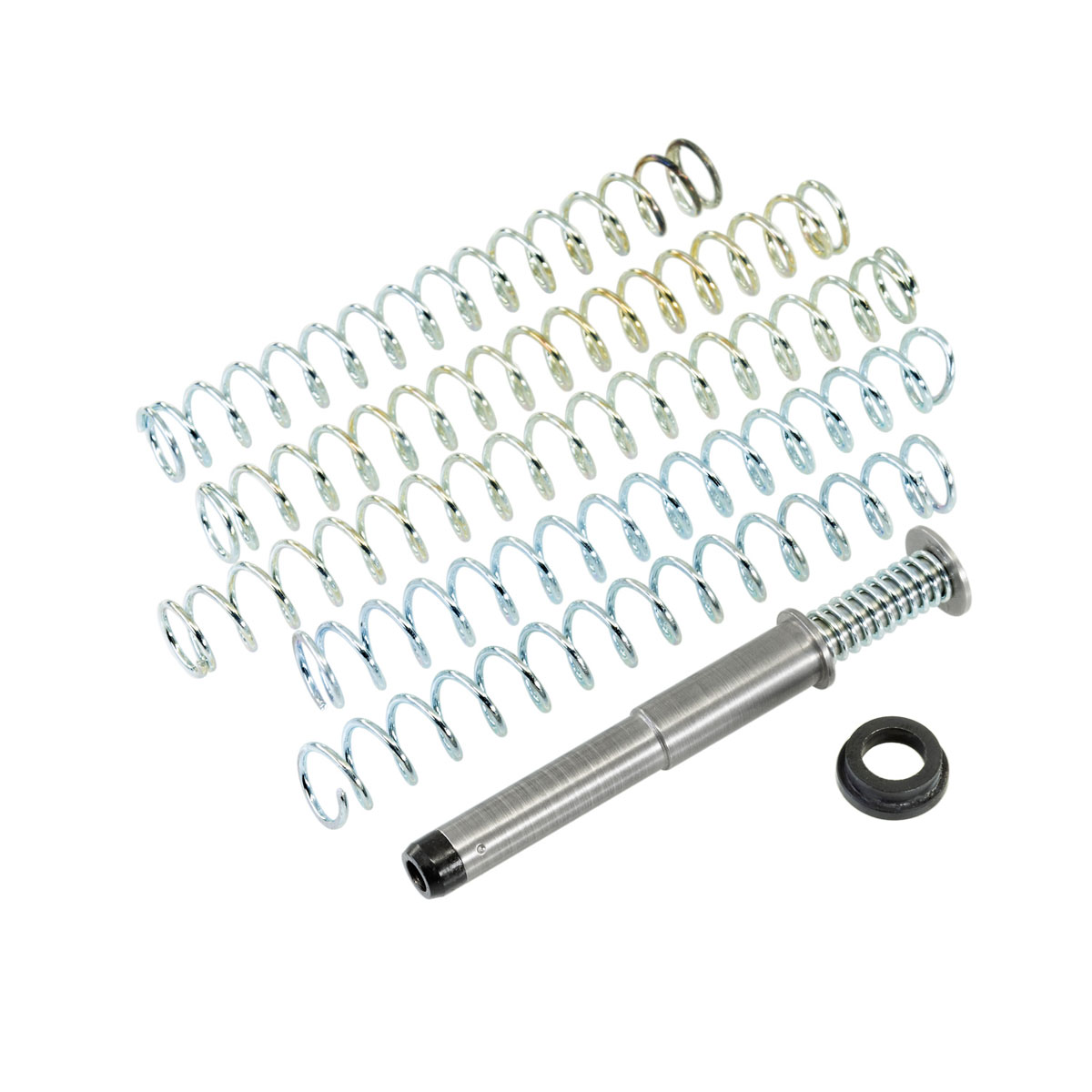

The kit includes 5 external springs, 3 x 1.05 mm  wire diameter (long set) and 2 x 1.1mm  wire diameter (shorter set), all with different power rates.

The long set (1.05mm WD) is softer than the short set (1.1mm WD), following below are their power rates table.

 **As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Will Fit:

• MR920P
• XR920P
• DR920P
• All Aftermarket Comps

DPM for Shadow Systems CR 920 Combat & Elite Version Recoil Spring Assembly Instructions

The DPM for Shadow Systems CR 920 Combat & Elite r  recoil spring system works due to its multi spring rod design (three springs) by producing an advanced recoil reduction technique by gradually slowing the slide down before impacting the frame of the pistol using Spring No. 1 (see fig. below) and Spring No. 2. The third spring (Spring No. 3) which is contained within the rod itself controls the movement of the slide so it never rams on the frame.

Power Rates

Slide on the battery (idle position)

External Springs 1.05mm  (long set)

• Short Spring: 3.3kgs / 7.3lbs
• Medium Spring: 3.8kgs / 8.3lbs
• Long Spring: 4.3kgs / 9.5lbs

External Springs 1.10mm  (short set)

 Slide on the battery

• Short: 4kgs / 9lbs
• Long: 4.7kgs / 10lbs

Slide full open position

• Total Force:  5.44kgs / 12lbs (approx.)

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy
• Better control and greater accuracy

*Dimensions of the spring are the same as the original.
