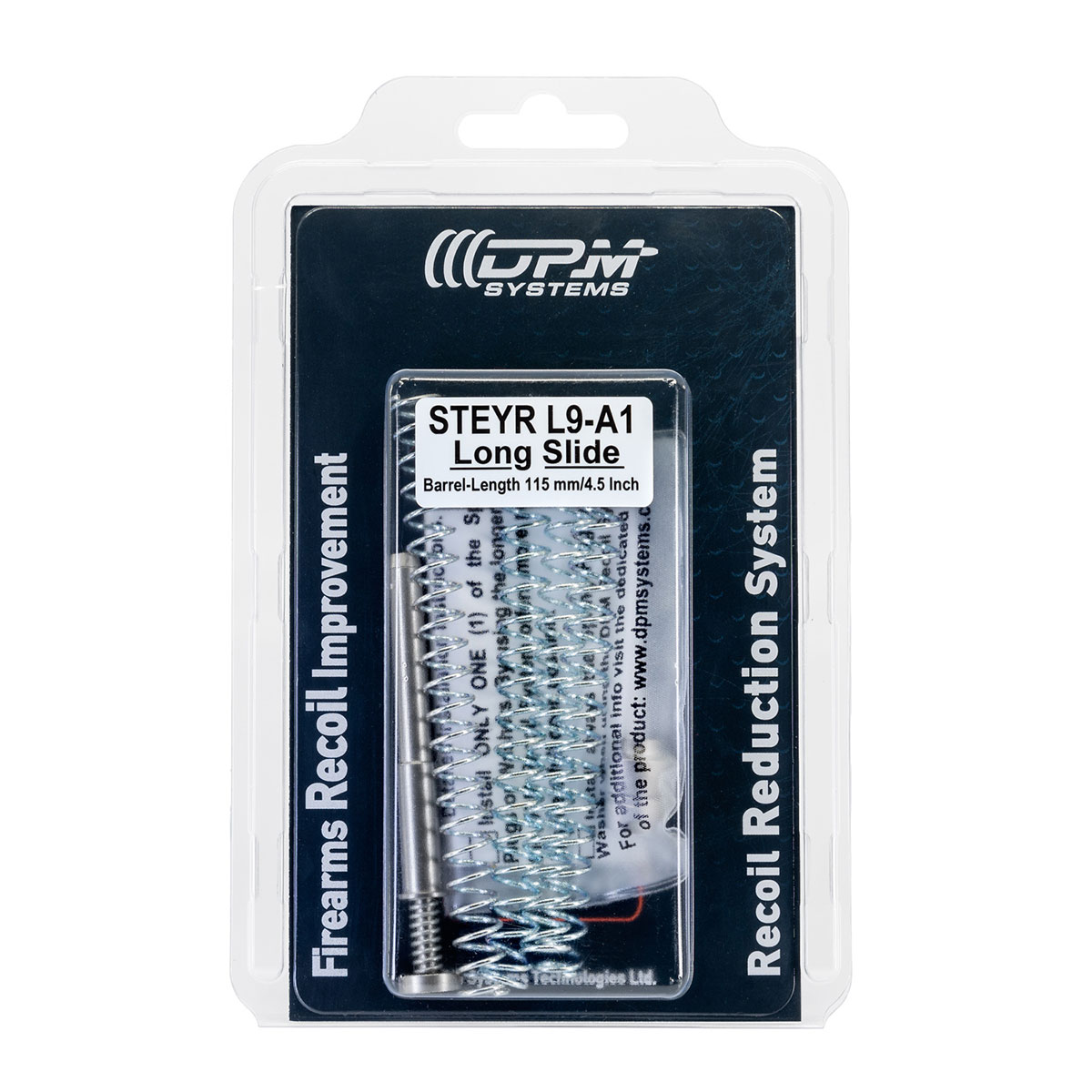

DPM for Steyr L-A1 and A2 Long Slide

About the STEYR L40-A1 Recoil Reduction Spring Rod by DPM Systems:

The DPM Recoil Rod is a direct replacement for the stock recoil rod and does not change the configuration of the pistol. As always, DPM products are designed and developed with user’s safety as a priority. Exceptional manufacturing and engineering using high-end materials.

• 8 Adjustable Settings

This system works due to the multi spring intricate rod (three springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

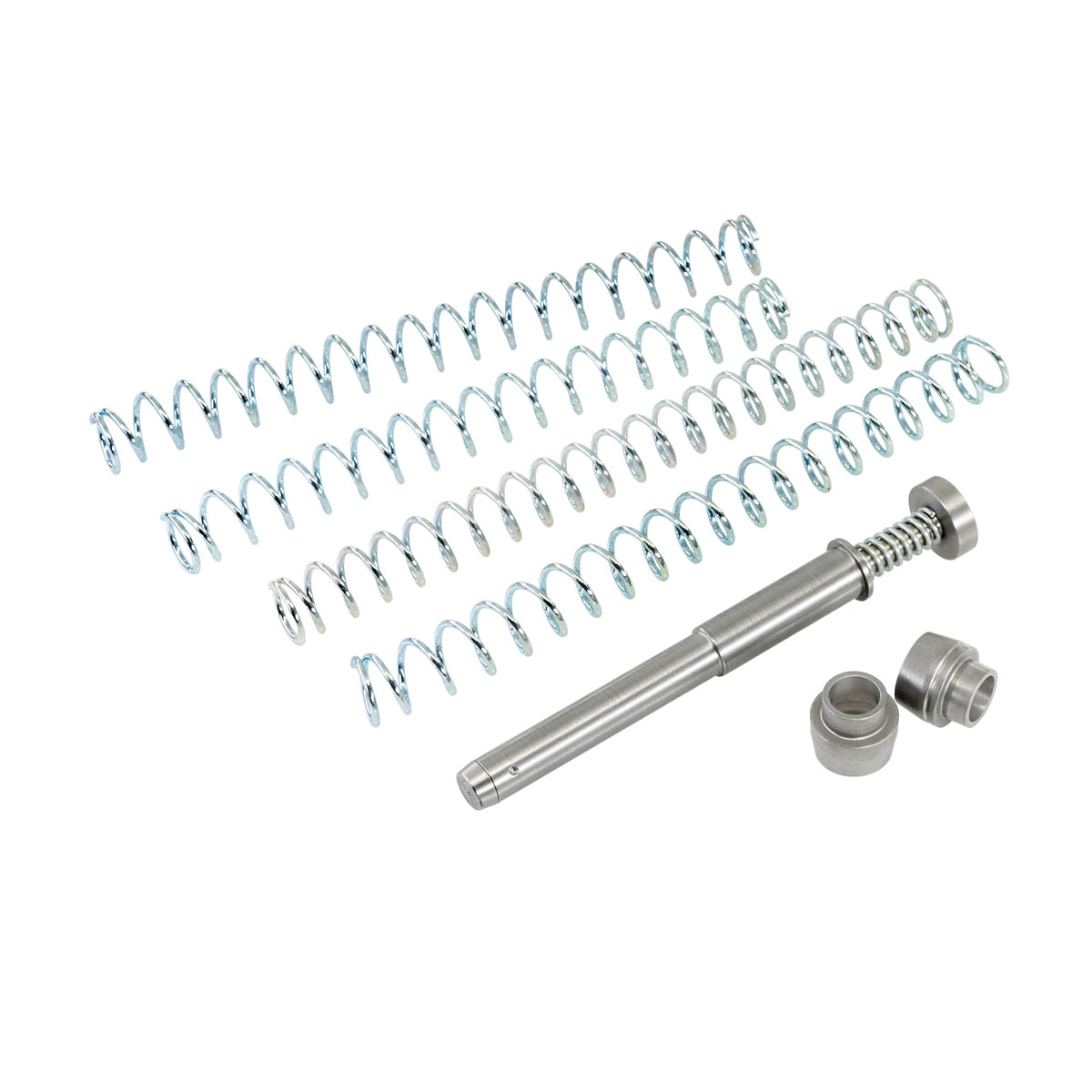

The system includes 2 Stainless Steel Plugs and 4 different external springs.

The Spring Plug must always be installed when using the DPM Recoil Rod and Springs.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Slide full open position

Slide on the battery:

• Short Spring: 9 lbs
• Medium Spring: 10 lbs
• Medium/Long Spring: 11lbs
• Long Spring: 12lbs

 Total Power:

• Short (visible Groove) Spring Plug: 17 lbs
• Long Spring Plug: 23 lbs

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

*Dimensions of the spring are the same as the original.
