DPM MRS for Glock pistols G19-23-25-32-38 GENS 1-3 SOFT VERSION

About the DPM for Glock 19-23-25-32-38 Gen 1-3 soft version by DPM Systems:

The DPM Mechanical Recoil Reduction System for Glock 19-23-25-32-38 Gens 1-3 NEW SOFT VERSION replaces the original factory guide rod/spring system and produces an advanced recoil reduction by absorbing the shock gradually and slowing the slide down before its impact with the frame of the pistol. Because the system is an interior modification of your pistol it will not change the external dimensions of the handgun, therefore there is no for a new holster, sights or any other accessory you own.

*B.O.S.S : Black Oxide Stainless Steel  its an innovative coating technology applied usualy on the visible parts of the recoil system.

Will Fit: Glock 19-23-25-32-38 Gens 1-3

Glock 19-23-25-32-38 Gens 1-3

The DPM for Glock 19-23-25-32-38 Gens 1-3 recoil spring system works due to its multi spring rod design (three springs) by producing an advanced recoil reduction technique by gradually slowing the slide down before impacting the frame of the pistol using Spring No. 1 (see fig. below) and Spring No. 2. The third spring (Spring No. 3) which is contained within the rod itself controls the movement of the slide so it never rams on the frame.

DPM Mechanical Recoil Reduction System for Glock 19-23-25-32-38 Gens 1-3 NEW SOFT VERSION

This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the gun. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

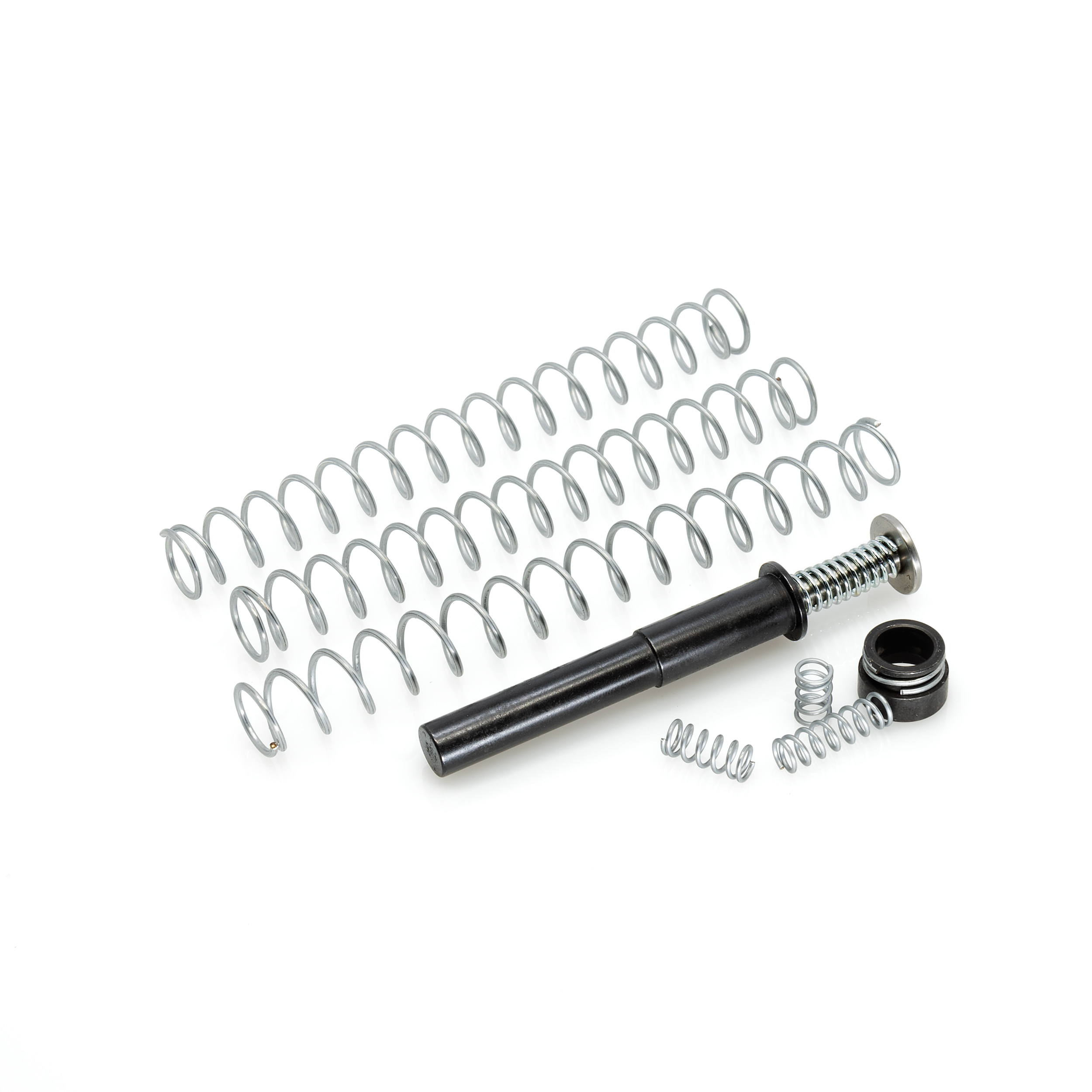

 The system includes 5 external springs, 2 x 1.0 mm wire diameter (long set) and 3 x 1.05mm wire diameter (shorter set), all with different power rates.

The long set (1.0mm WD) is softer than the short set (1.05mm WD), following below are their power rates table.

Power Rates:

Soft Springs 1.0mm (long set)
Slide on the battery

• Short Spring: 3.5 kg / 7.7 lbs
• Long Spring:  3.9 kg / 8.6 lbs

Harder Springs 1.05 mm (short set)
 Slide on the battery

• Short:         4 kg / 8.8 lbs
• Medium: 4.4 kg / 9.7 lbs
• Long:       4.7 kg / 10.3 lbs

Slide full open position
9 kg / 19.8 lbs (approx.)

Overall Advantages

• • Faster follow up shots
  • Improved firing speed
  • Slide and Frame Protection
  • Elimination of jams
  • Significant recoil reduction
  • Better double-tap concentration
  • Better control and greater accuracy

For changes to features, like comp set-up, threaded barrels, slide conversions etc., contact us via email at [email protected] before placing your order. In some cases, we need to determine whether a custom product is required.



*Dimensions of the spring are the same as the original.
